Northeastern Railroad Track Charts Volume 1, Rev.9 - $10*

FINAL REVISION!!!

The collection that started it all!

*Now available as a direct download via Dropbox®! See main NMRO Products page for details.

Now available from the NMRO archives is a compact disk chock full of railroad condensed profiles (commonly referred to by railfans as track charts).

This collection covers nearly all of the following:

Boston & Maine Railroad;

Rutland Railroad;

Central Vermont Railway;

Maine Central Railroad;

Boston & Albany - Main Line from the 1950's;

Conrail - New England Division Track Charts from 1981;

New England Central Charts from 1997.

--------------------------------------

The Boston & Maine section also includes subsidiary railroads:

St. Johnsbury & Lake Champlain;

Montpelier & Wells River;

Suncook Valley;

Springfield Terminal (original)

--------------------------------------

Track Charts Revision #8 also contains:

Some (about 75%) Boston & Albany Branch Line Track Charts from about 1958.

Conrail Hudson River Valley detailed scale track maps (EXCELLENT!!!).

Guilford Transportation Track Charts for the Maine Central and a few B&M lines.

A few segments of Delaware & Hudson.

Boston & Maine Track Map from 1931 of the greater Boston area, absolutely great!

117 DOT track maps from the early 1970's (Penn Central vintage) that include all the northeastern states From Maine to West Virginia.

25 charts from Canadian Atlantic Railway.

47 Additional PRR track charts from the Susquehanna River valley area.

Penn Central Transportation charts for the Mohawk, Buffalo and Canada Divisions (286 images).

Bangor & Aroostook Station Track Plans (31 pages - 87 stations).

Canadian Pacific's Lyndonville Subdivision from 1930 (8 images). EXTREMELY RARE!!!

A few CNJ segments from NJ & PA (21 images).

Clarendon & Pittsford (pre-Vermont Railway) detailed track drawings directly traced from land valuation maps (14 images).

--------------------------------------

New for Track Charts Revision #9:

The single greatest addition to complete Track Charts Volume 1 is the addition of a nearly complete set of Boston & Maine signal aspect charts (V-plans) which also includes some for the Portland Terminal and Maine Central.

Also added is a full set of station track drawing for the Canadian Pacific's Lyndonville and Richford Subdivisions.

There are other numerous updates and additions throughout the collection, far too many to list here.

--------------------------------------

Our NMRO goal is to make this extraordinary collection available to all at an extremely LOW price of only $10!! If this collection were even possible to buy elsewhere, it would cost you THOUSANDS of dollars through private sales or hit-or-miss e-Bay auctions. Clarification: The data is FREE because it is public domain. NMRO just does the leg work for you.

See our samples (reduced size for easy web viewing) below from several of the covered railroads. Ordering information is at the bottom of the page.

Special Note:

This first volume of Track Charts is FULL and it is all thanks to the donations from our loyal clients!! Volumes 2 & 3 covering the New York, New Haven & Hartford have also been released - but we still need YOUR help in completing those volumes as well!! There are still many more historic charts and maps we would like to find and add to the collection. In particular, we have little in the way of historic New Haven Railroad eastern lines track charts and Bangor & Aroostook Railroad material. Historic Delaware & Hudson Railroad material has now been released on Volume 4, which is a complete CD and will not be revised. We would also welcome ANY form of mapping that shows old railroad lines and facilities of any type, including logging and electric trolley operations.

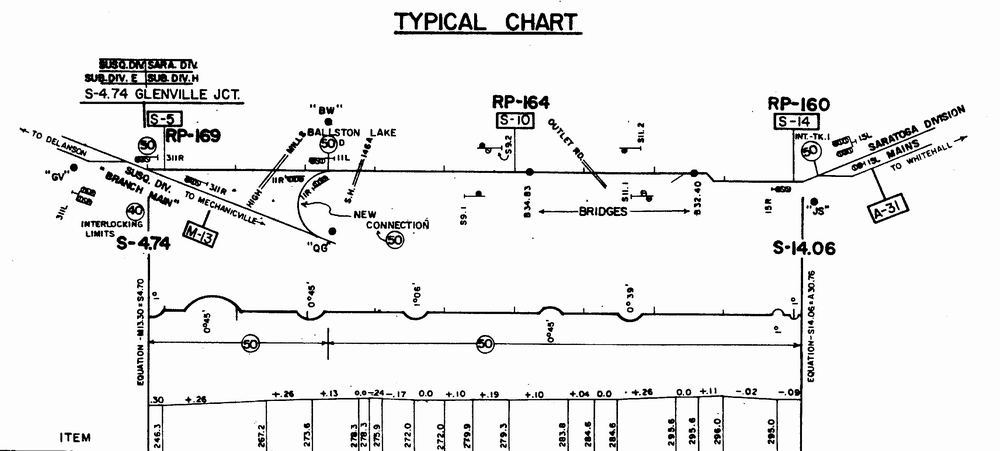

Classic Delaware & Hudson Railway Sample

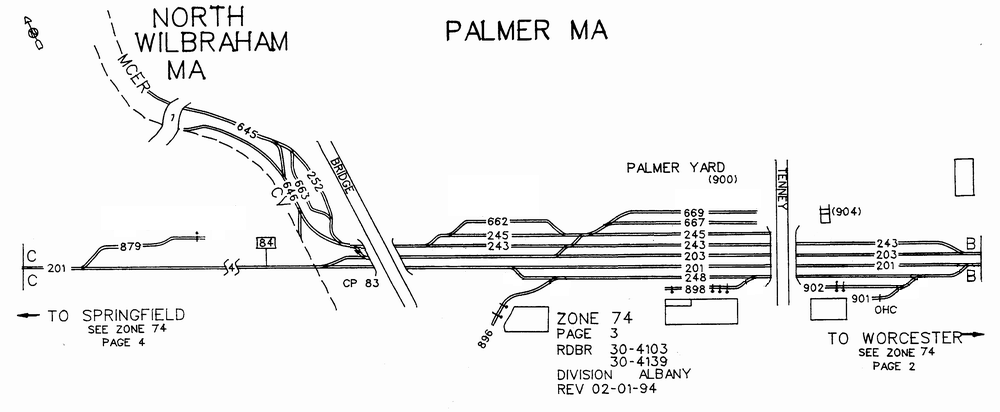

Conrail ZTS Map Sample

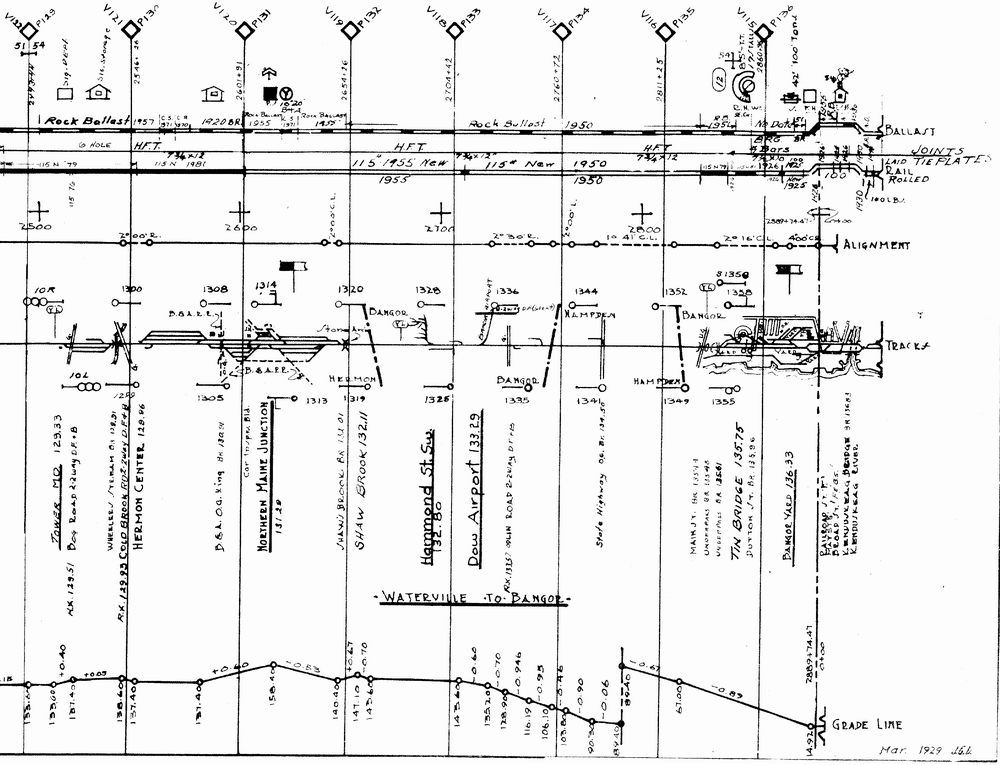

Maine Central Sample

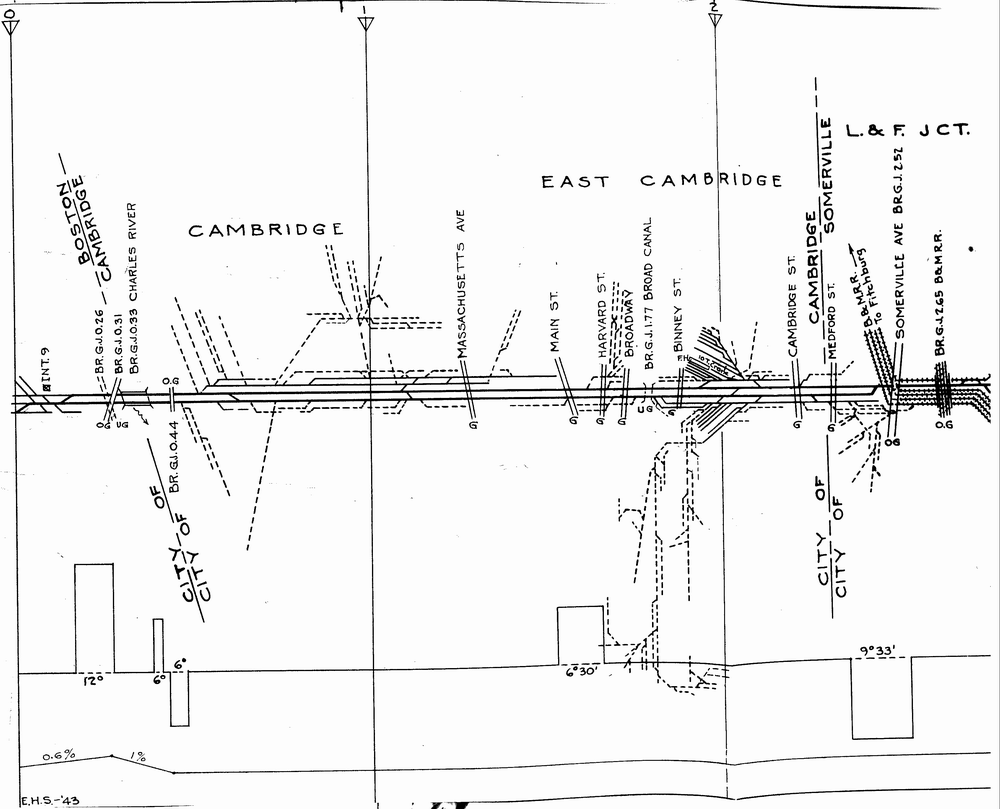

Boston & Albany Sample

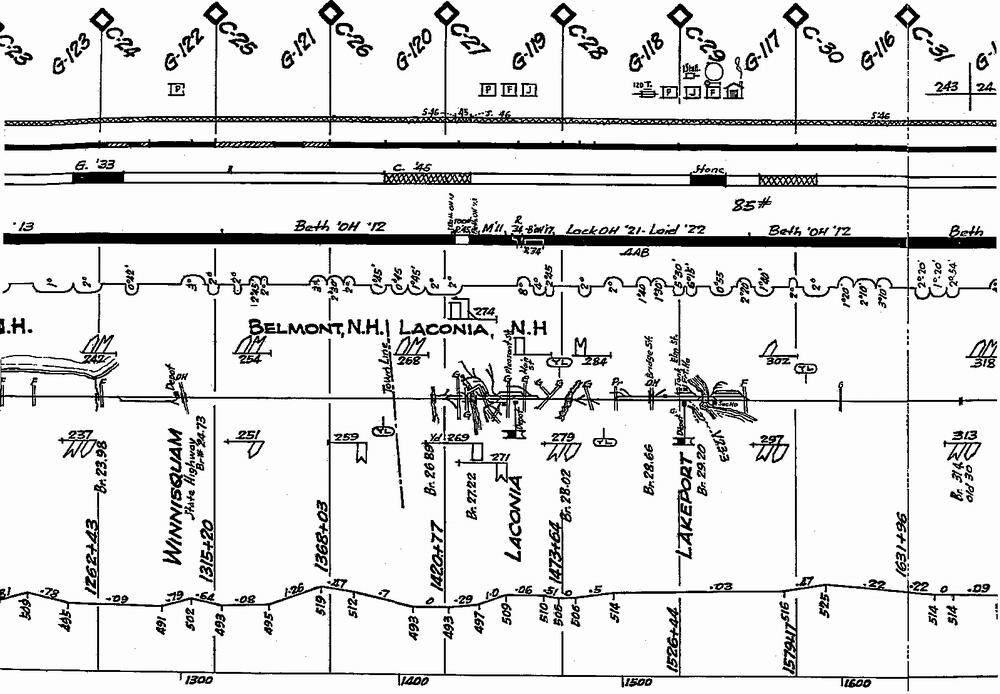

Boston & Maine Sample

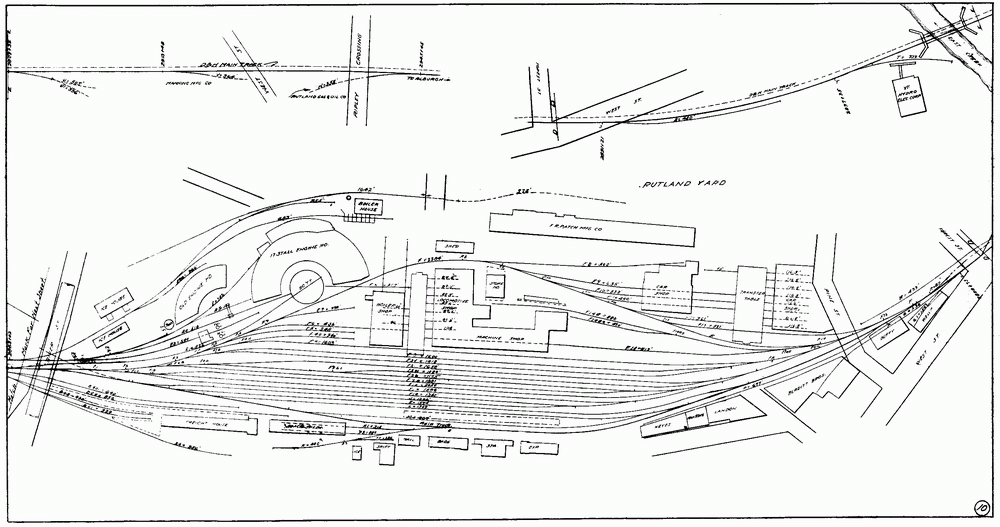

Rutland Sample

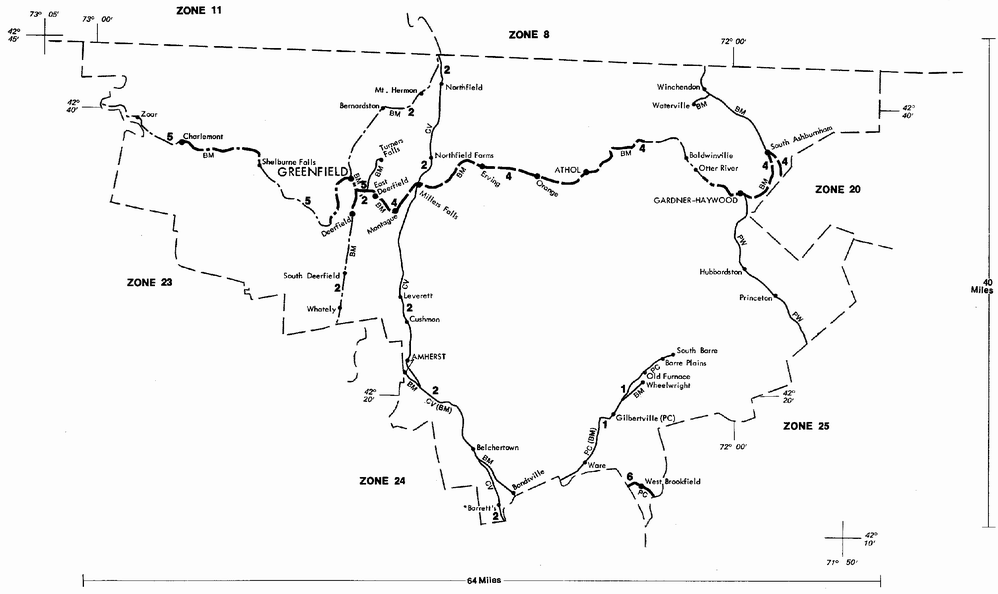

DOT map sample

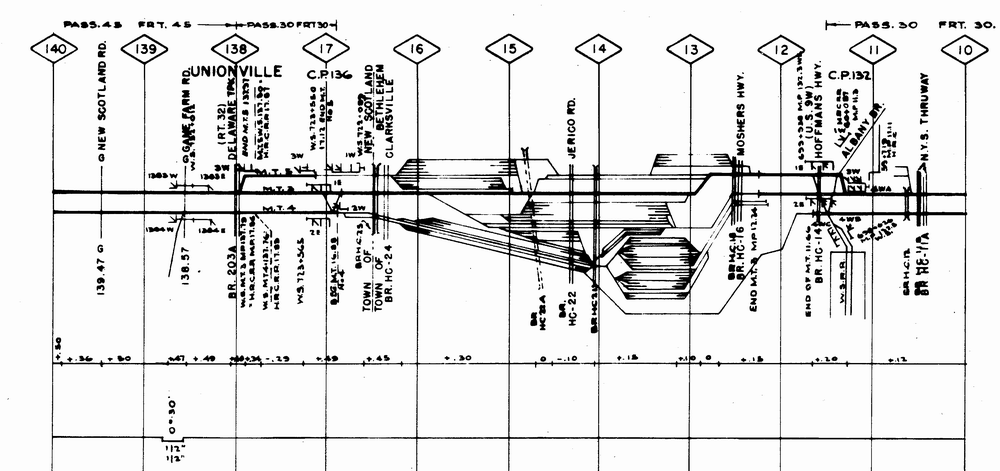

Penn Central map sample

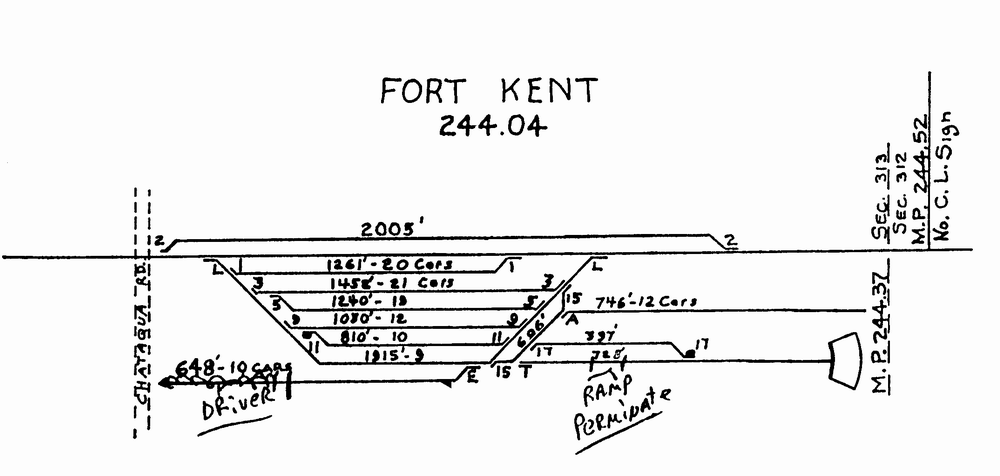

Bangor & Aroostook sample

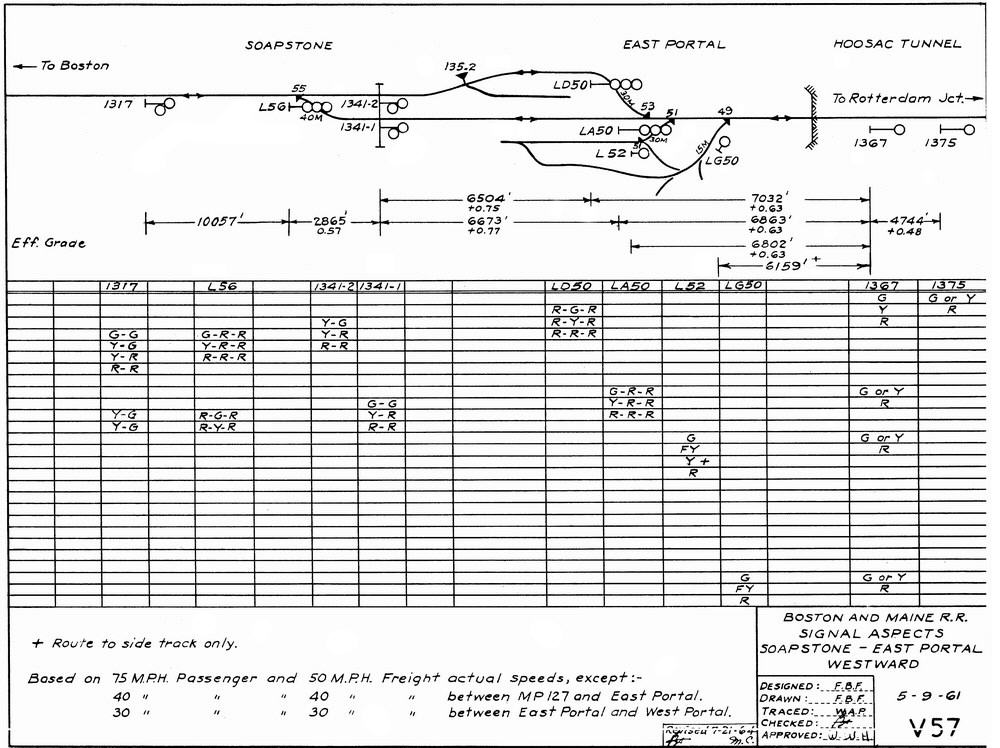

Sample Signal Aspect Chart

Order your copy today by mailing $10 + $2 postage to:

Scott J. Whitney

78 Goret Dr.

Colorado Springs, CO 80911

NOTE 1: International mail orders must include $4 additional postage to Canada & Mexico, Total postage $6.

(NOTE 2: ALL International mail orders outside North America must be by Dropbox download only.)

Or use the handy PayPal links below:

Track Charts - Vol-1, Rev-9 - Via Dropbox ($10 + No Postage!)

Track Charts - Vol-1, Rev-9 - On Disk ($10 + $2 P&H)

Additional First Class Mail Postage to Canada & Mexico - $4
